Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 1025 × 795 × 360 mm |
| Article number | A0SG0179 |
| Manufacturer | Sungrow |
| Country of origin | China |
| Product warranty | 10 jaar |
| Phase | Three-phase |

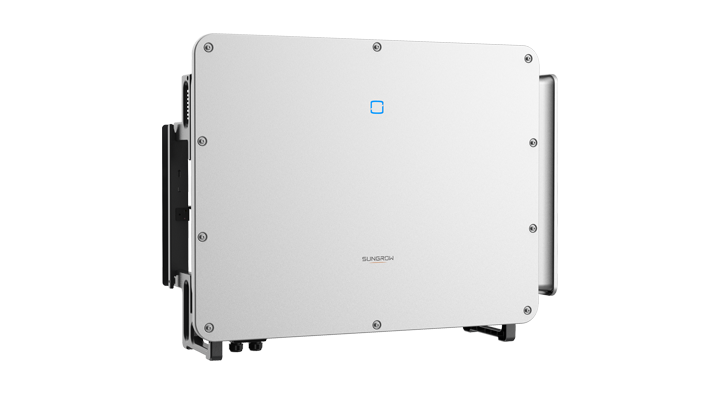

The Sungrow SG150CX is a high-performance 150 kW string inverter for 1000 Vdc PV systems. Featuring 7 independent MPPTs, high input current, and compatibility with all PV modules, it offers maximum design flexibility for commercial and industrial projects.
✓ 98.8% efficiency and global MPPT scanning for optimized yield
✓ 7 MPPTs and 21 inputs (3 strings per MPPT)
✓ IP66 & C5-rated for dust, water, and corrosion resistance
✓ AFCI 3.0 with active fault detection for enhanced safety
✓ PID recovery and intelligent string monitoring
✓ Wall-mountable, operates up to 4000 m altitude
| Weight | 100 kg |
|---|---|
| Dimensions | 1025 × 795 × 360 mm |
| Article number | A0SG0179 |
| Manufacturer | Sungrow |
| Country of origin | China |
| Product warranty | 10 jaar |
| Phase | Three-phase |
